FACCHINI  srl



Pocket, mechanical

DYNAMOMETERs



FD   (18 Kb)



Instrument weight : about 100 grams (3.5 Oz) , depend on instrument full scale.

Dimension (without accessories) : 111 x 59 x 24 mm (4.4 x 2.3 x 0.9 inch).



LIST OF AVAILABLE DYNAMOMETERS



Note that : FD / FDN are push+pull , DT / DTN are push only



MODEL CAPACITY GRADUATION   MODEL CAPACITY GRADUATION
FD 101 1 Kg.

2 Lb

10 gr.

0.02 Lb

  FDN 10 1 Kg.

10 N

10 gr.

0.1 N

FD 102 2.5 Kg.

5 Lb

25 gr.

0.05 Lb

  FDN 20 2 Kg.

20 N

25 gr.

0.2 N

FD 105 5 Kg.

10 Lb

50 gr.

0.1 Lb

  FDN 50 5 Kg.

50 N

50 gr.

0.5 N

FD 110 10 Kg.

20 Lb

100 gr.

0.25 Lb

  FDN 100 10 Kg.

100 N

100 gr.

1 N

FD 120 20 Kg.

40 Lb

200 gr

0.5 Lb

  FDN 200 20 Kg

200 N

200 gr.

2 N

FD 130 30 Kg.

60 Lb

250 gr.

0.5 Lb

  FDN 300 30 Kg.

300 N

250 gr.

2.5 N



Please note that DT / DTN instruments have the same FD / FDN code

Example : DT 102 has a full scale of 2.5 Kg or 5 Lb



FD push use    (10 Kb)

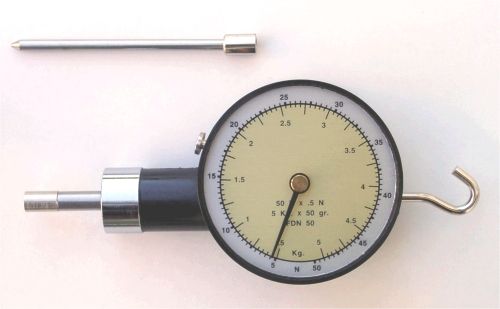

 ACCESSORIES INSIDE :

Manual

Calibration sheet

Warranty

Hook (FD / FDN only)

Flat and sharp tips

FD pull use    (6 Kb)




NEW DOCUMENT TO DOWNLOAD



DYNAMOMETER brochure

(380 Kbytes)

Brochure preview   (11 Kb)



 To view them you need Adobe Acrobat Reader. get Acrobat (2 Kb)

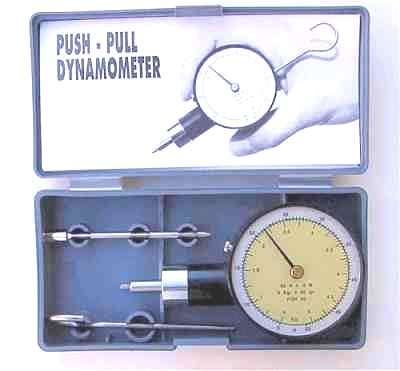

FD instrument in its rugged plastic case with standard accessories

FD  box    (14 Kb)

Case size : mm 145 x 72 x 33 - Ship weight : about 200 grams
